Royce Thompson P12HE Miniature 20mm 25 Lux

Product Info

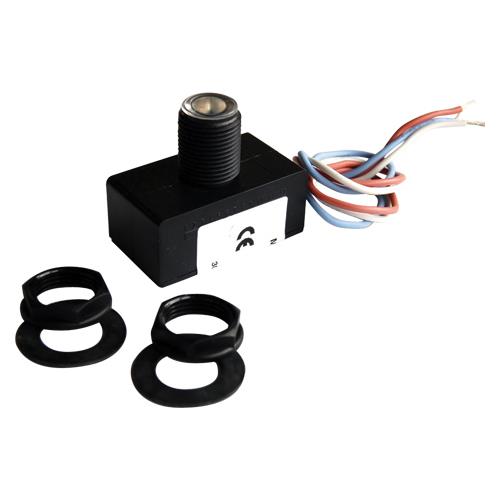

Royce Thompson P12HE
A low cost, robust and reliable photocell for use in industrial, commercial and residential applications.

Key features:
• Compact miniature body
• Reliable electromagnetic relay.
• 300mm leads as standard.

Applications:
• Bulkhead light fittings.
• Security lighting and Area (flood) lighting.

Specification:

Sensor type:Cadmium sulphide.
Standard switching level:25 Lux.
Switching differential: 1:1.5
Operating voltage: 220/270 Vac, 50/60 Hz.
Maximum lamp load:2 x 250Winductive (60µF).
Maximum resistive load: 2000W.
Power consumption: 0.96W.
Operating temp range: -15/+65°C.
Warranty: 2 years
Ingress protection: IP65 (lens only).
Options:Switching levels and wire length to meet customer
requirements. 17mm lens projection.
Dimensions (mm): W31, L57, D 25, lens diameter 20, lens projection 25.

Technical Data

Royce Thompson P12HE Miniature 20mm Head & Lock Nuts 25 lux
