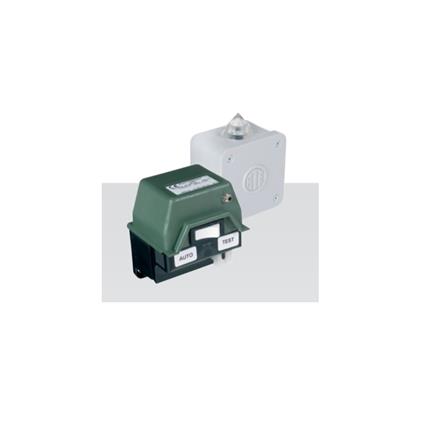

Royce Thompson V400 Two Part Photo-Cell 25-2000lux

Product Info

Royce Thompson V400 adjustable photocells with integral ‘press to test’ capability are ideal for control of lighting circuits where lux level adjustment is required along with remote detection. A special ‘reserve acting’ variant is available to meet the special requirements of tunnel and underpass lighting.

V400 Photocell Specification:

Sensor type: Cadmium sulphide. Operating voltage: 230 Vac +/- 10%, 50/60 Hz. Maximum lamp load (HID): 3 x 400W 96µF. 8A (res). Switching differential: 1:1.5 positive. Switching range: 25 – 2000 Lux. Power consumption: 0.6W. Operating temperature range: -20 / +80°C Warranty: 2 years. Ingress protection: IP65 (detector) IP54 (housing)

7TCA230150R0091
TP871104110PT

Royce Thompson photocells are a well-known brand of photoelectric cells. They are highly regarded for their quality and reliability. Royce Thompson photocells are commonly used in outdoor lighting applications, such as streetlights and garden lights. They are designed to accurately detect changes in ambient light levels and automatically control the operation of the lights they are connected to. With their robust construction and precise light sensing capabilities, Royce Thompson photocells ensure efficient and effective lighting control, enhancing both safety and energy efficiency.

Technical Data

Royce Thompson V400 Two Part Photo-Cell 25-2000lux
