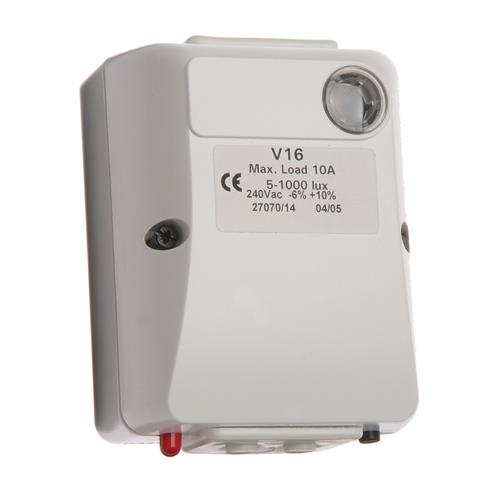

Royce Thompson V16 One Part Photo-Cell 5-1000lux

Product Info

The Royce Thompson V16 is compact, attractive and easy to install, ideal for the control of residential lighting installations where switching level adjustment is required. Key features: • Integral detector. • Attractive and robust plastic casing. • Easily adjustable Lux setting. • Switching delay to prevent ‘spurious switching’. Applications: • Residential lighting. • Communal housing lighting. • Amenity security lighting. • Switching other loads on and off an predetermined Lux levels. Specification: Sensor type: Cadmium sulphide. Operating voltage: 230 Vac +/- 10%, 50/60 Hz. Maximum lamp load: 2200VA, (10A resistive). Switching differential: 1:1.5. Switching levels: 5 – 1000 Lux. Switching delay: 10 secs ‘on’, 40 secs ‘off’ Operating temperature range: -20 / +80°C Warranty: 2 Years Ingress protection: IP54

7TCA230200R0017
SP480100000
SP-480100000

Technical Data
