Watertight Clamps Connection Devices

Product Info

Watertight Clamps Connection Devices:
With 3 or 5 Poles

Rated voltage: 450 V
Impulse voltage: 6 kV
Rated current: 25 A (3 poles)
16 A (5 poles)
Working temperature: T -20°C + 85°C
Type of clamps to connect the cables: SCREW CLAMPS
Clamps connecting connect the cables: 1,50 ÷ 4,00 mm 2
Protection degree (IP): IP68 (0,5 bar)
In conformity to the standards: EN 60998 and
EN 60335 (for the cable gland)
In conformity to the requirements
of the directive: B.T. 2006/95/CE
Approval marks: IMQ

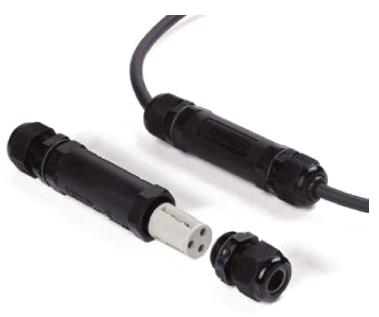

• Watertight clamps connection device with 3 poles:
-external envelope in black PA66
- housing parts for the contacts in PA66.
- bush screw clamps, in nickel-plated brass, with slot screw in
zinc-plated iron..
- gaskets in thermoplastic SEBS rubber.
- cable gland in black PA66.

Device suitable to connect lighting fixtures to the power net,
which grants an high protection degree against water.

• The cable clamp device can be connected to multi-conductor cables, arranged with unsheathing 25 mm and stripping 6 mm or crimped with end-terminal.

Clamps connection device with 3 poles, diameter 26,5 mm, length 115 mm with cable gland hexagonal 24 mm for cables diameter between 5 and 13 mm.

Technical Data

Watertight Clamps Connection Devices: with 3 or 5 poles.
