3 Line Watertight Connection Device
Product Info
3 Line Watertight Connection Device
Connection: nr. 1 line in nr. 2 lines out
Rated voltage: 500 V
Rated current: 17,5 A
Working temperature: T -20°C + 60°C
Type of clamps to connect the cables: SCREW CLAMPS
Clamps connecting
connect the cables: 1,50 mm 2
Protection degree (IP): IP68 (0,5 bar)
In conformity to the standards: EN 60998
EN 60335 (for the cable gland)
EN 50262 (for the cable gland)
In conformity to the requirements
of the directive: B.T. 2006/95/CE
Approval marks: ENEC 03

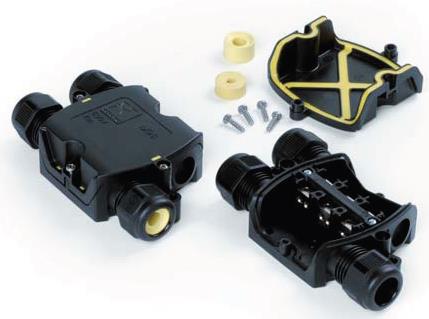

Watertight connection device:
- external envelope in PA66.
- gasket in thermoplastic vulcanised TPE.
- cable glands with gaskets in TPE for cables with diameter
between 6 and 11 mm.
- cable clamps i n nickel-plated brass with engraved-hexagon
head screws in zinc-plated iron.
- screws to close the device in stainless steel.
Device useful to connect the power cable (mains power)
with two exit cables (parallel connection of lighting fixtures)
suitable for lighting fixtures in outdoor applications.
The device can be connected to multi-conductor cables unsheathed 35 mm and stripping 6 mm or crimped endterminals
