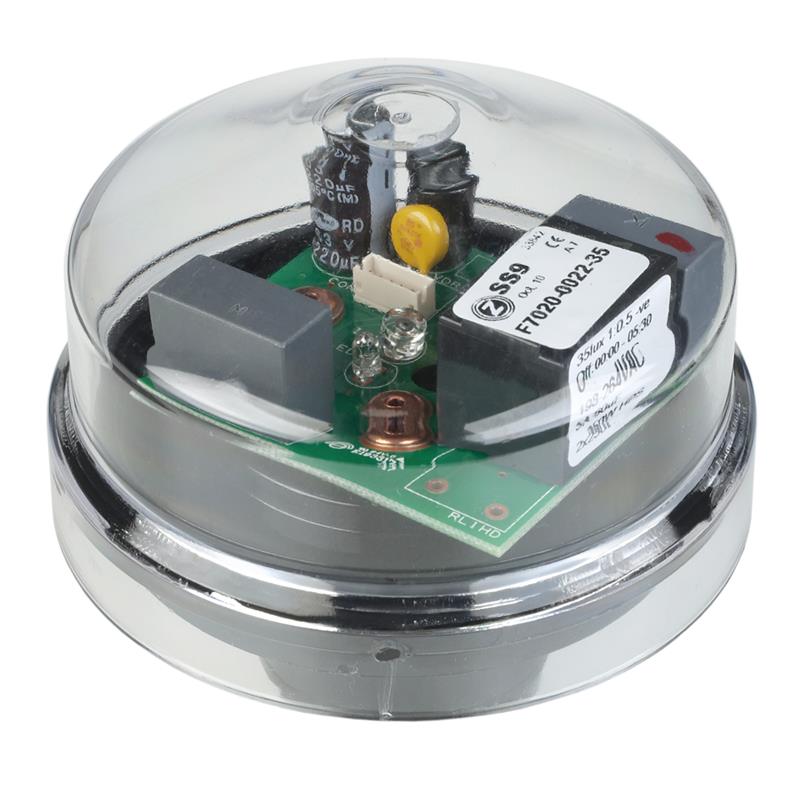

Lucy Zodion SS9 Part Night Photo-Cell Kit

Product Info

Lucy Zodion SS9 Part Night Photo-Cell Kit.

(Kit - supplied with wall mounting bracket, base & fixings)

The Lucy Zodion SS9 & other part night photocells are ideal for saving energy and reducing running costs.

Lucy Zodion SS9 photocell switches the lights on as the sun sets and then turns off at midnight. Then at 5am switches back on if needed. For example in the summer months when its light early it may not switch the lights back on at all, whereas in the winter months they will be turned back on. Standard NEMA fitting - self calibrating, the smart chip works out automatically the time of year it is by the hours of light in a day.

Electronic EM Relay Load Switching: YES
Supply Voltage 50/60Hz AC: 198-264, 50Hz only
Switching Differential: 1:0.5 NEG
Maximum total load for discharge lighting (eg. HPS, MH) (watts): 500
Maximum total load for incandescent lighting (watts) / Maximum VA: 1200
Switching Delay In Seconds: 10
Polycarbonate Enclosure (UV Stabilised): YES
Power Consumption (watts): <0.25
Sensor Type: Photo IC
Sensor Drift: Negligible
Max Operating Ambient Temp Range (ºC): -20/+80
IP Rating Installed: IP65
VDR Voltage Supression: YES
Additional Features: Part Night / Predictive Transfer Switching

Technical Data

Lucy Zodion SS9 Part Night Photo-Cell Kit
